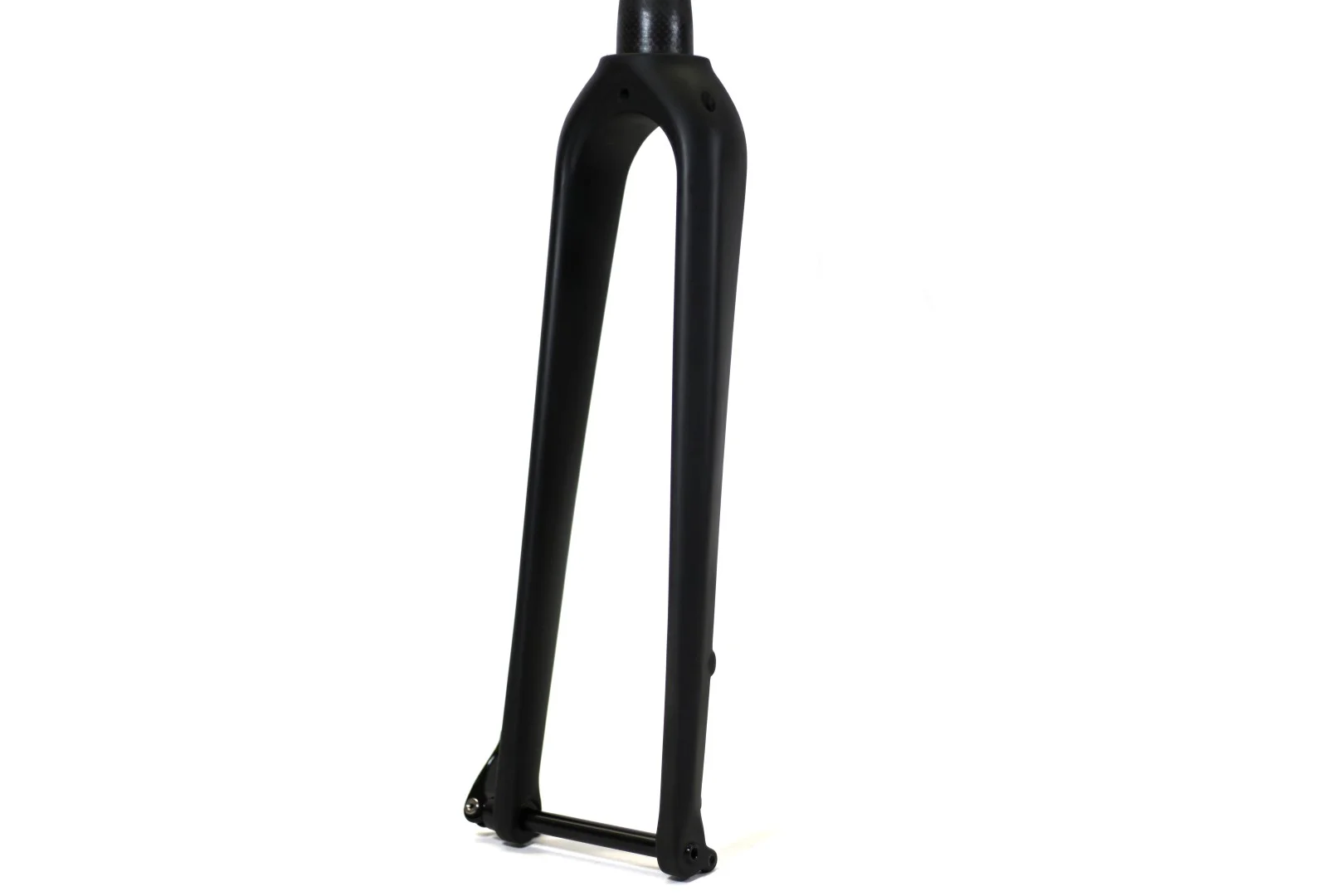

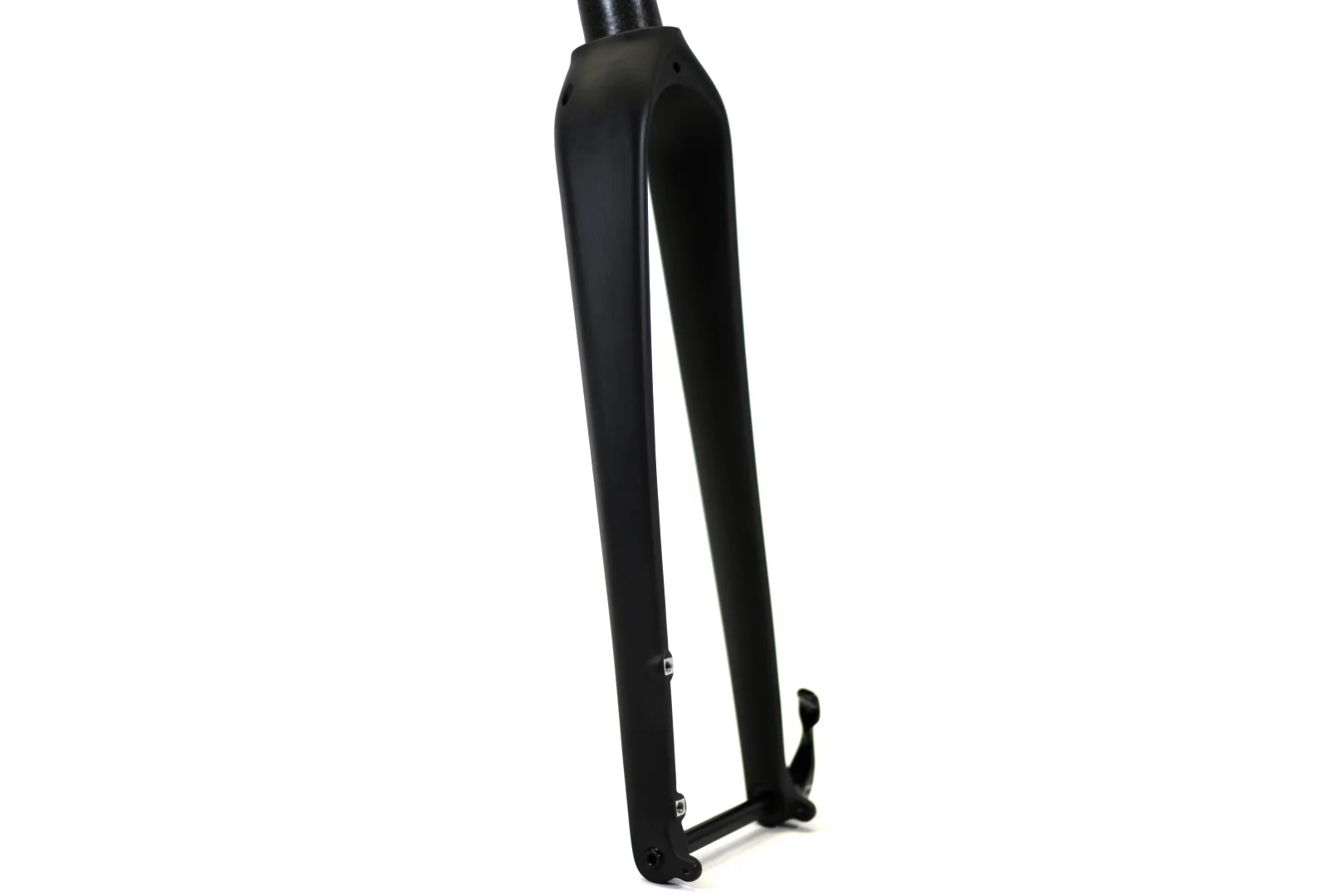

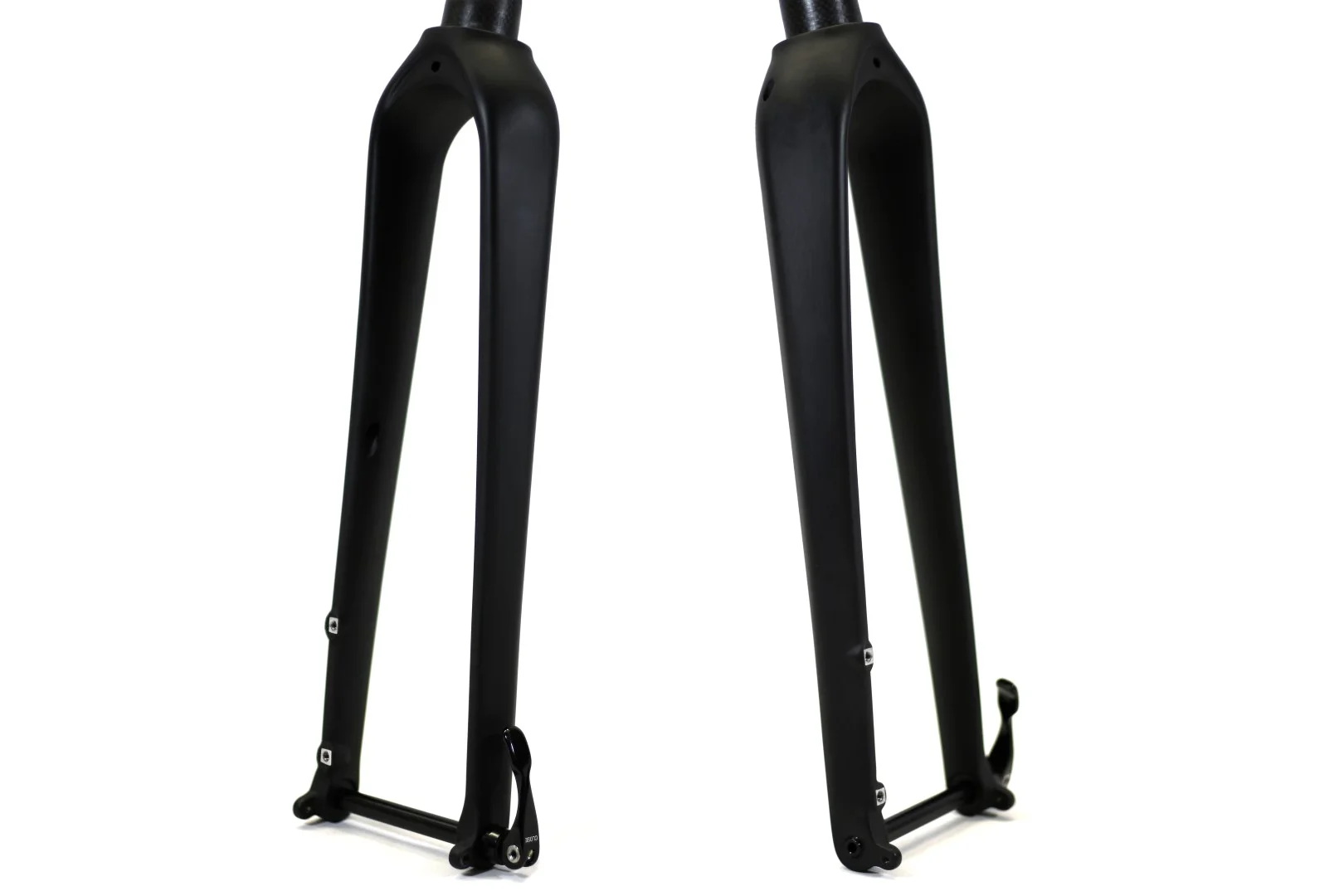

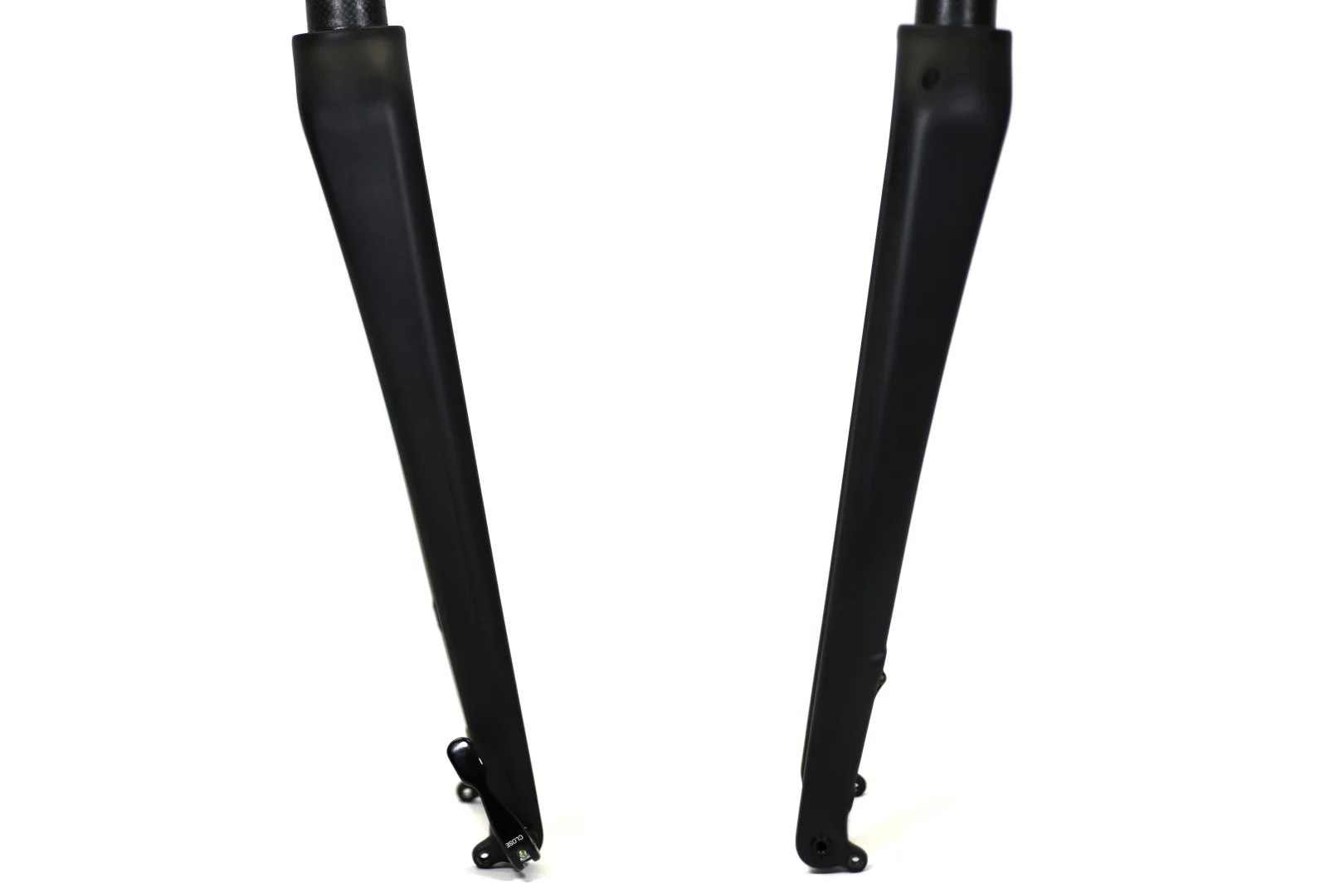

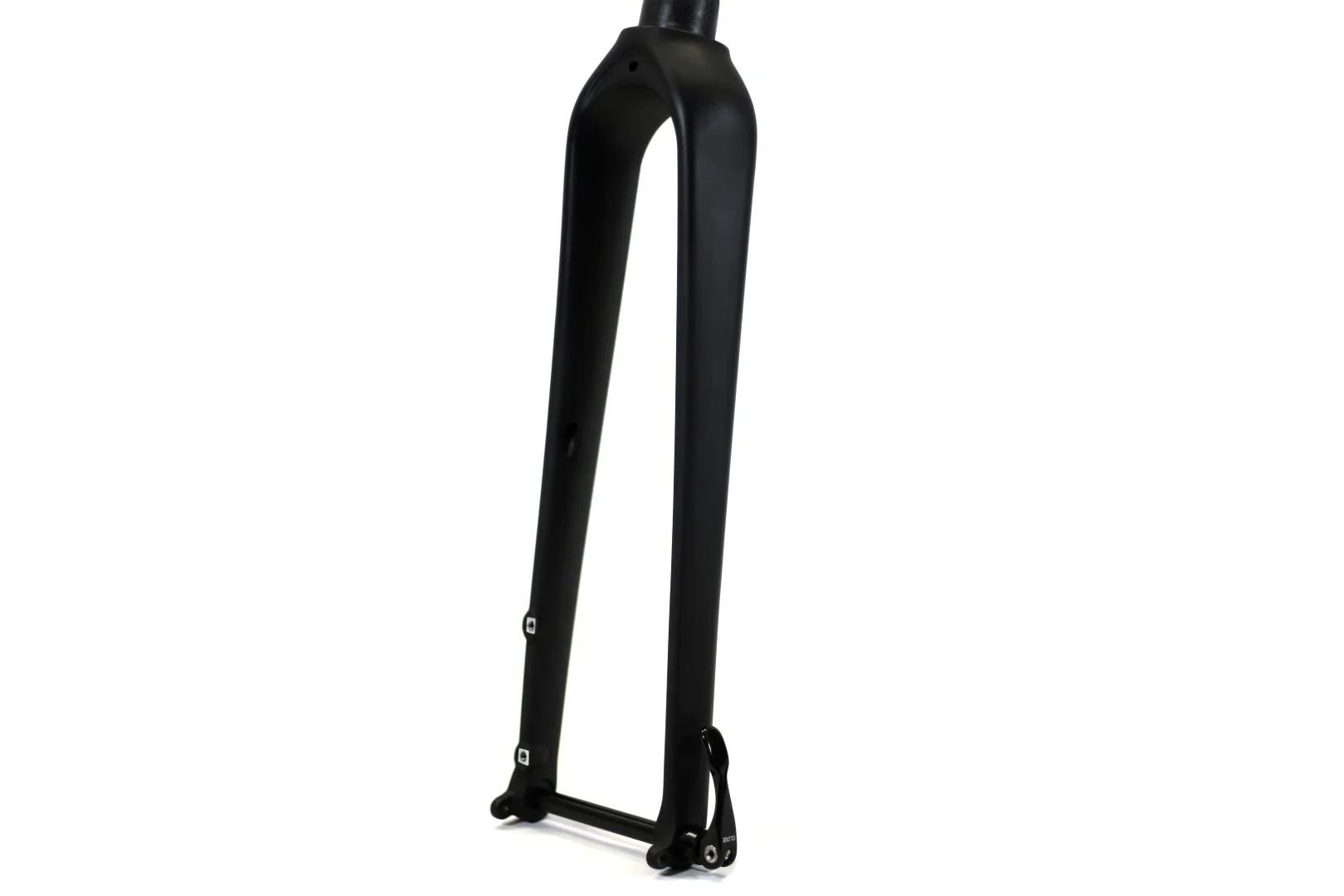

REN UXFM 12TA // 1.5" Tapered Carbon Disc Fork

REN-Fork-CXFM (1).jpg
REN-Fork-CXFM (1).jpg

REN UXFM 12TA // 1.5" Tapered Carbon Disc Fork

from 450.00

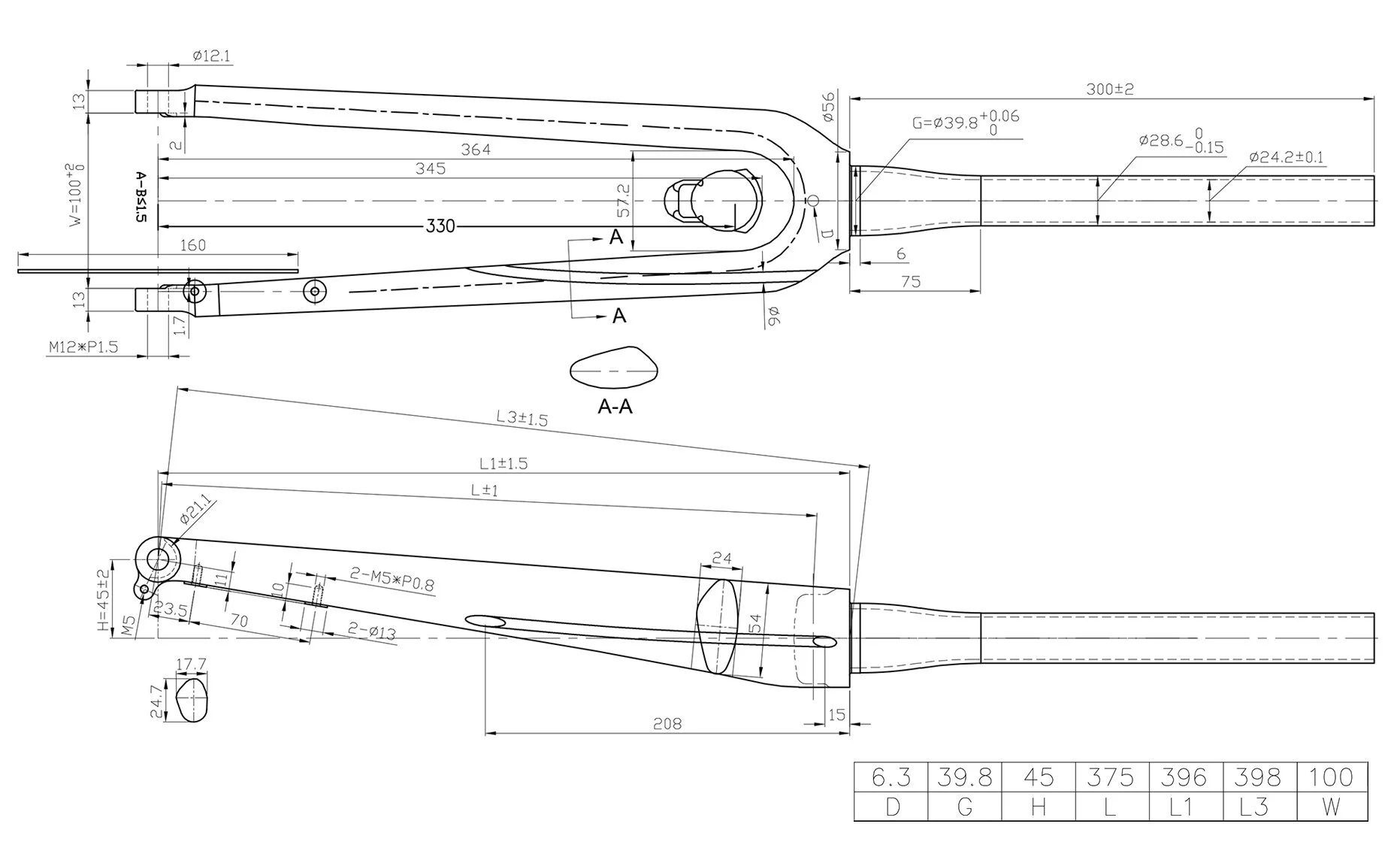

:: AXLE-CROWN: 398mm
:: OFFSET: 45mm
:: STEERER: 1.5 Tapered // 300mm

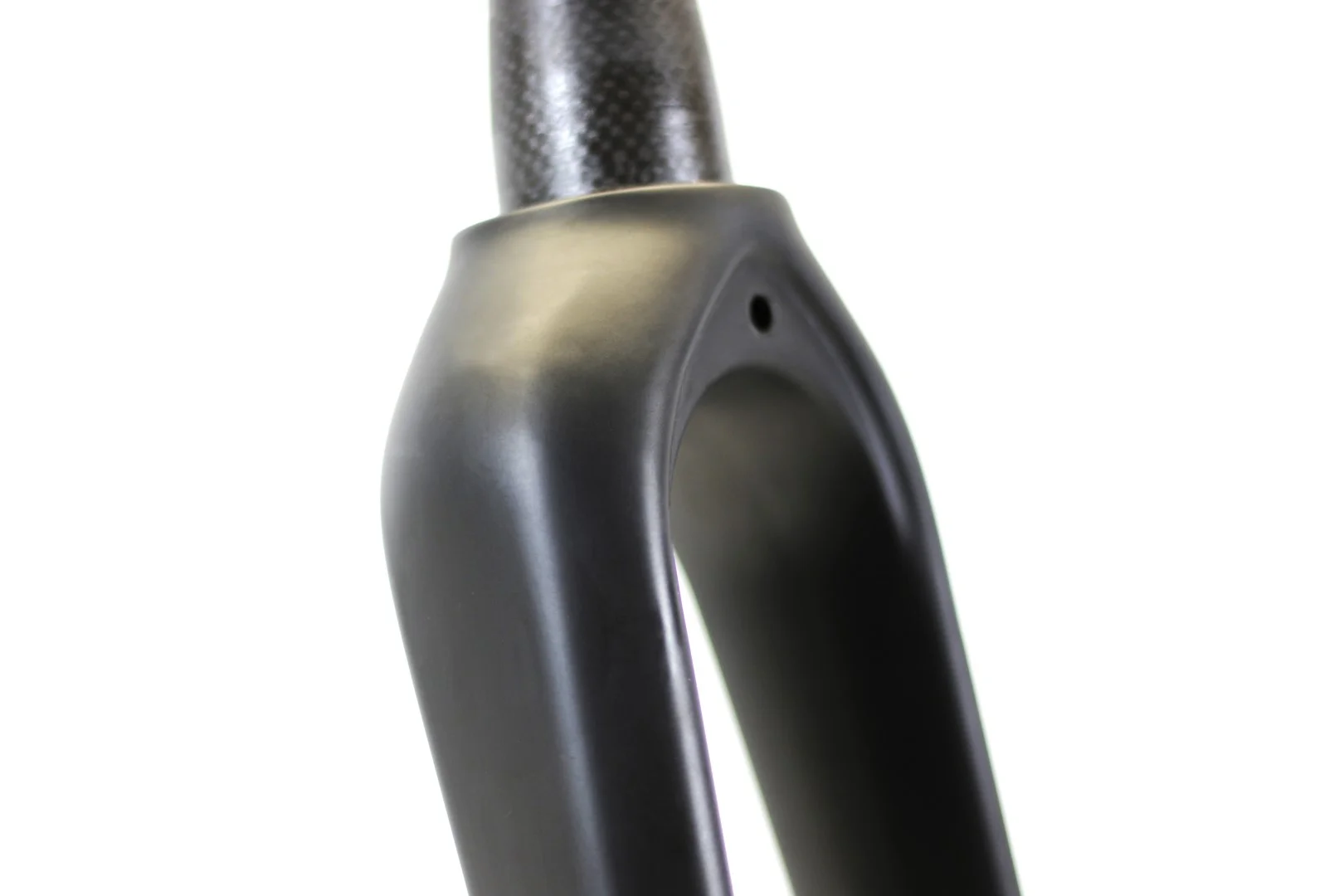

:: CROWN OD: 56mm
:: DROPOUT: 12mm TA

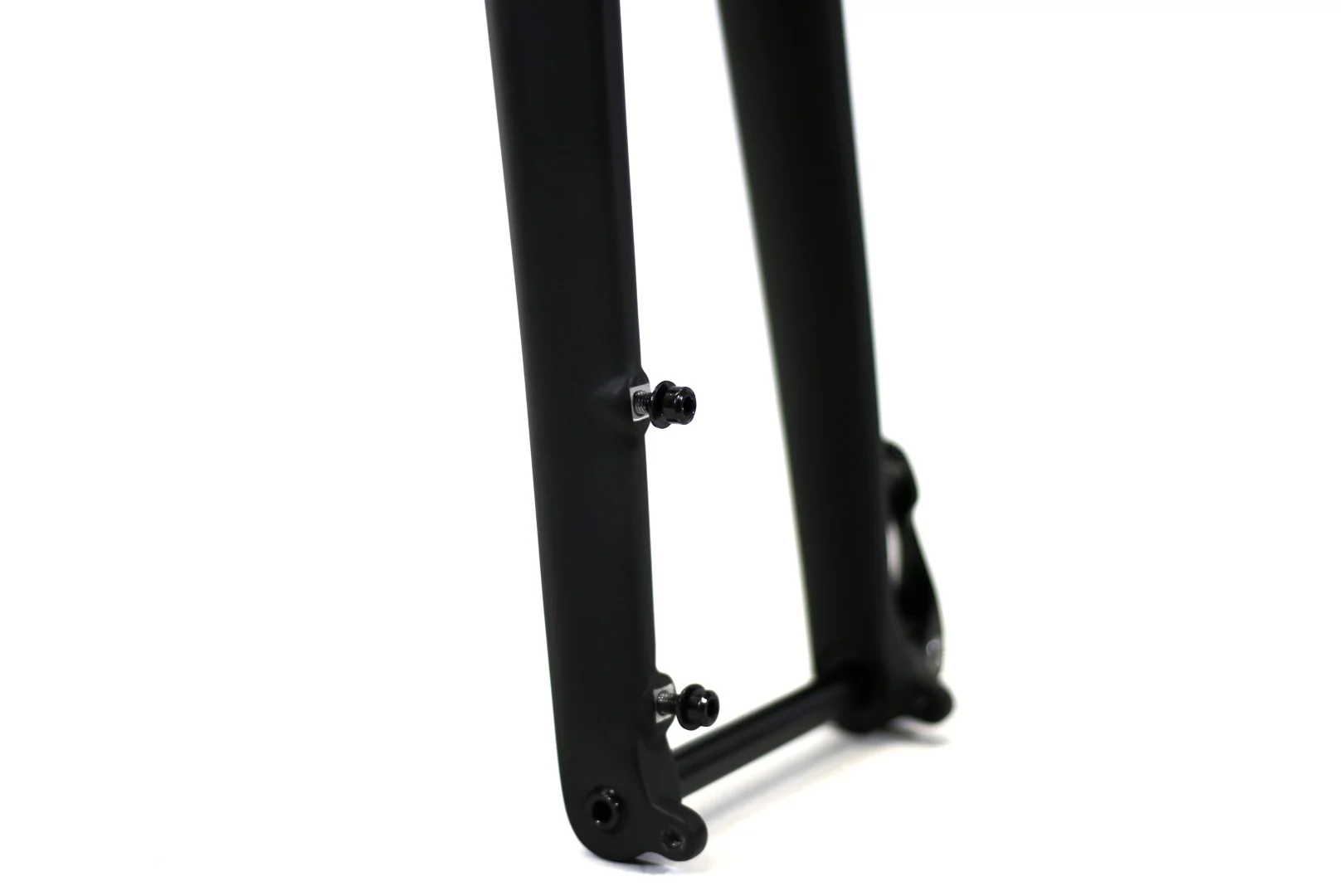

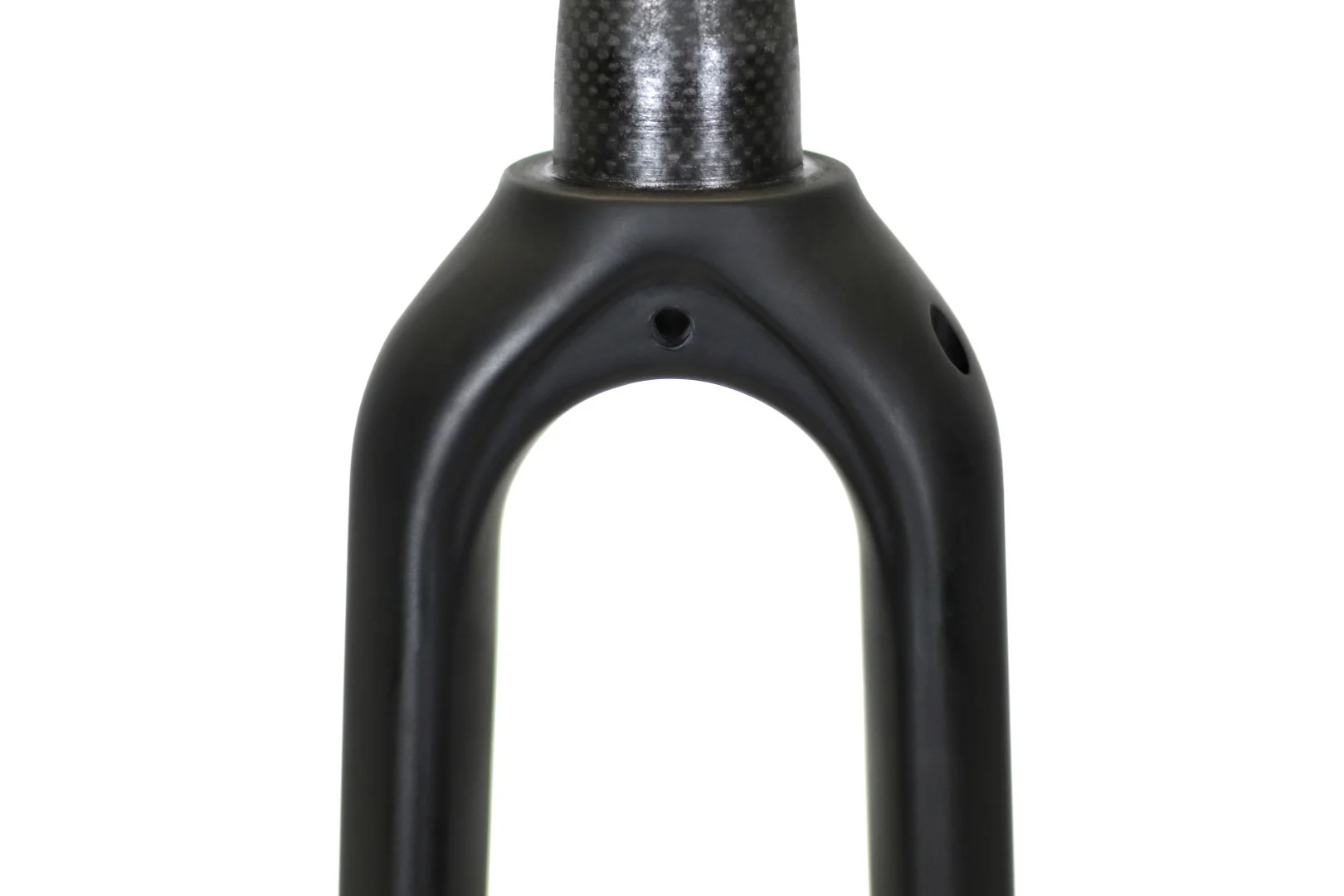

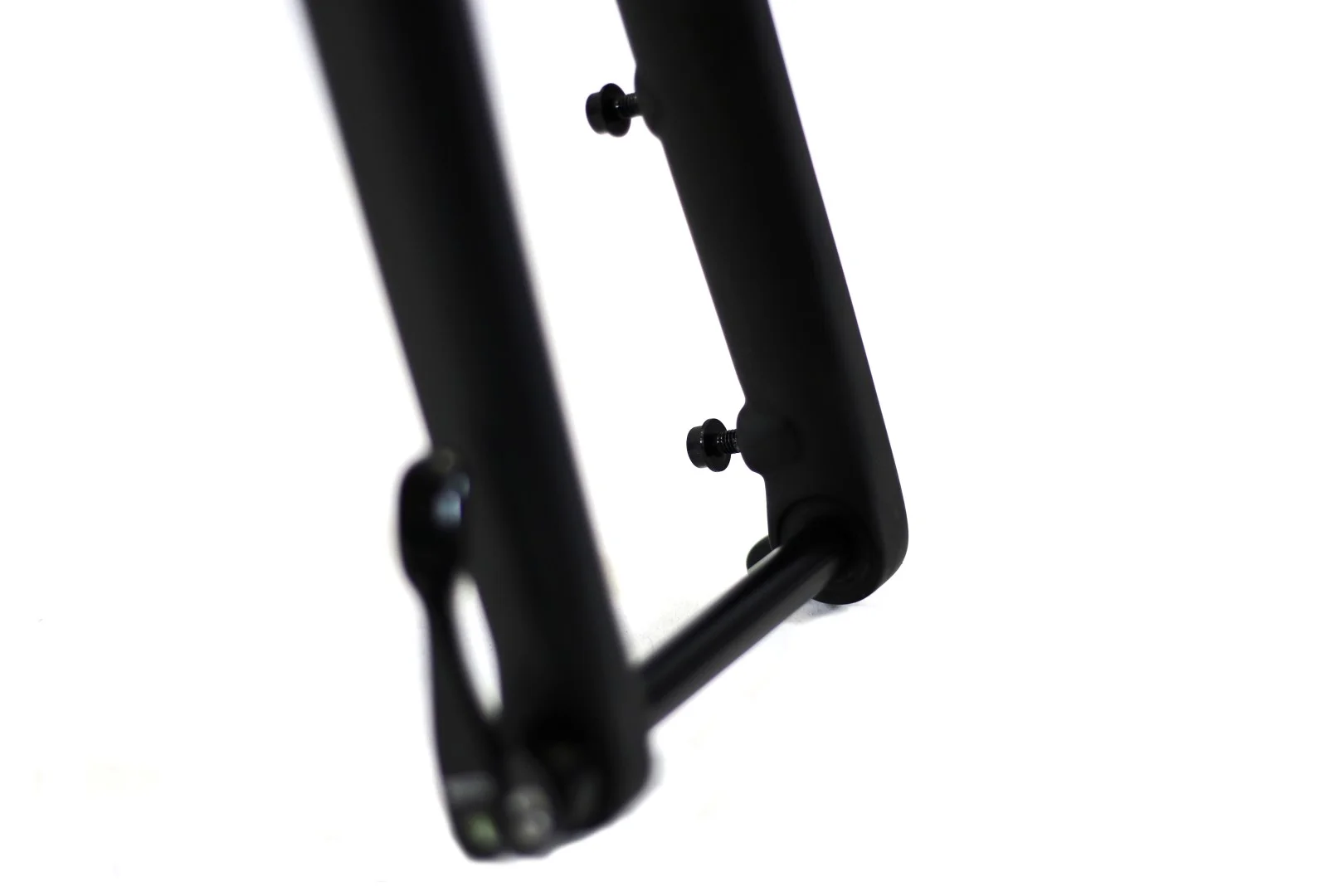

:: EYELETS: 5mm Dropouts // 6mm Crown Thru Hole
:: BRAKE: Flat Mount // Disc Only
:: ROTOR: 160mm max
:: TIRE: 45mm max
:: WEIGHT: 415g fork only
:: INCLUDES: 12TA axle // compression plug
:: TESTING: ISO 4210
:: FINISH: UD matte // Minimalist black graphic

CONFIGURATION:
RACK:
Quantity:
Add To Cart

REN UXFM

LIGHT, RESPONSIVE, ROAD HUNGRY.

STANDARD CONFIGURATION
- WEIGHT: 495g standard configuration
- INCLUDES: Stock QR lever 12TA axle
- INCLUDES: REN compression plug with stainless steel bolt

LIGHTWEIGHT CONFIGURATION
- WEIGHT: 453g lightweight configuration
- INCLUDES: Robert Axle Project Lighting Bolt-On 12TA axle
- INCLUDES: REN compression plug with titanium bolt
- INCLUDES: 3x M5 titanium fender bolts

- Full carbon construction for optimal performance.
- Sporty 45mm offset provides reliable stability and performance in all conditions.
- The 12mm thru-axle, with standard DT Swiss-compatible thread, adds control and ups braking consistency.
- An elegantly shaped crown provides clearance for tires up to 700x45c or 27.5x2.0.
- The universal fender mounts provide real-world, Portland-approved practicality as well as mounting points for the optional Ti Cycles UXFM titanium rando rack.


OPTIONAL UXFM TITANIUM RACK: Rando ready!

- Built from scratch in our Portland shop, these full titanium racks provide a sturdy platform for randonneur style handlebar bags and are intended for use in conjunction with a handlebar mounted decaleur.
- Rack is confirmed compatible only with the REN UXFM carbon fork.
- Rack includes stainless steel mounting hardware.
- Rack is not compatible with panniers.
- Weight of rack and UXFM fork with full steerer, QR thru-axle and hardware is 710g.
- Recommended load limit is 25lbs.
