CAMPESTRAL 12-15-TA // THRU AXLE ADAPTER
CAMPESTRAL 12-15-TA // THRU AXLE ADAPTER
Allows the use of a standard 15mm x 100mm MTB/CX wheel with a 12mm x 100mm thru axle Road/CX fork.
MATERIAL: 3K carbon fiber
DIMENSIONS: 15x12x99 mm
WEIGHT: 9.7g / 0.34oz
DIRECTIONS:

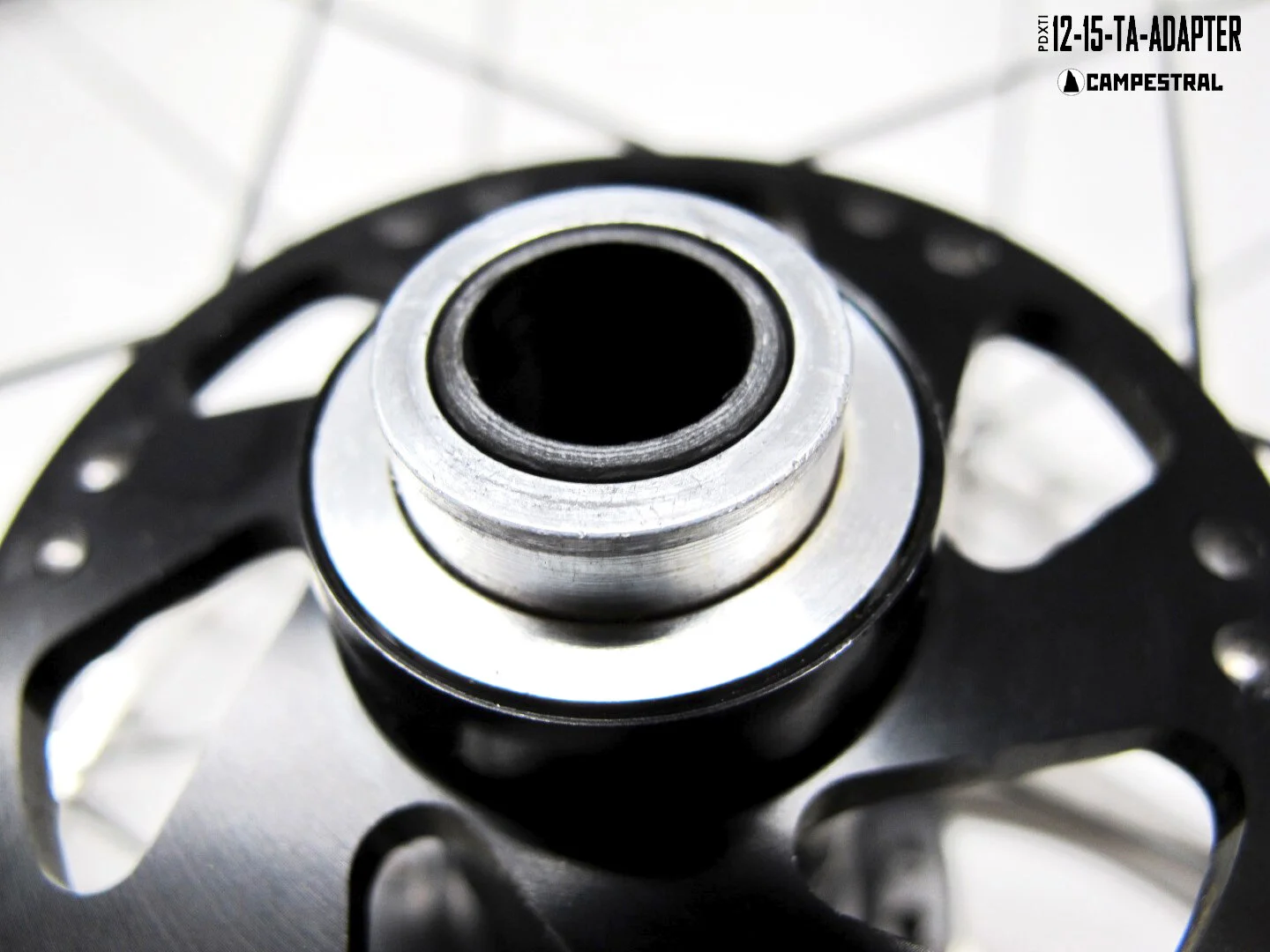

1) Slide 12-15-TA Adapter into 15mm hub.
2) Install wheel into fork as normal.
3) Install 12mm thru axle as normal.
NOTES:
- A thin layer of high quality grease on the outside of the adapter and the outside of the 12mm thru axle are recommended for ease of assembly and to provide an extra moisture barrier.
- The 12-15-TA Adapter is compatible with all 12mm x 100mm forks and all 15mm x 100mm hubs. Some 15TA hubs require an additional conversion to be compatible with some 12TA forks. If you are unsure if your hub and fork are directly compatible a few easy measurements can confirm. READ MORE >
- Thru axles provide compression force only. All mechanical interfaces between hub and fork lie upon the hub end caps. Because all hubs and forks are manufactured by third parties to differing tolerances, to ensure an interference-free fit with all possible combinations the actual width of the adapter is ~99mm, slightly under 100mm.
